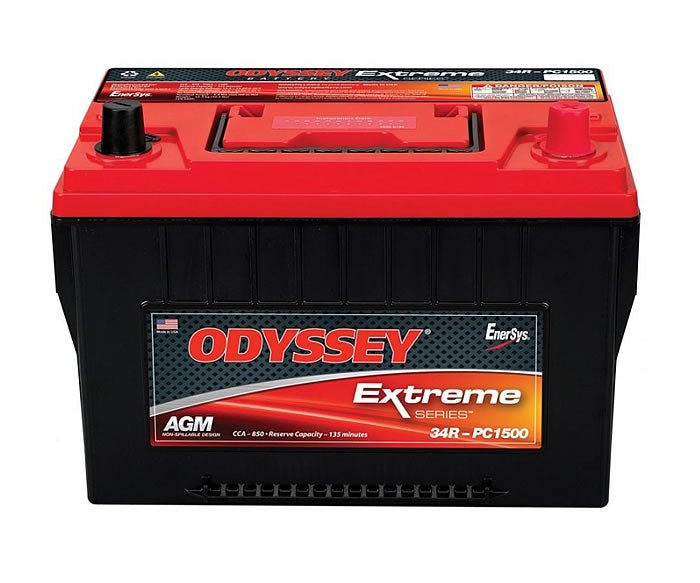

Odyssey Extreme Series Group Size 34R ODX-AGM34R/PC1500

ODYSSEY Extreme Series Battery

ODX-AGM34R

(34R-PC1500T)Group 34 with tin-plated brass SAE automotive posts - reversed terminals whether for everyday or emergency use, today’s vehicles are loaded with more electronics than would have been imaginable just a few years ago. ODYSSEY batteries have been designed to keep up with the changes. Because their plates are made of pure virgin lead (unlike the lead alloy in most batteries), we can pack in more plates. And more plates mean more plate surface area, and much more power – twice the overall power and three times the life of conventional batteries – up to 400 cycles at 80% depth of discharge!ODYSSEY batteries deliver the massive starting power, rapid recovery, and amazing deep cycling capability that today’s vehicles demand.

Dimensions

Length10.86 inWidth6.77 inHeight (terminals included)7.87 inHeight (container)7.26 inWeight49.5 lbs

Specifications

Voltage12Pulse (5 second) Hot Cranking Amps (PHCA)1500Cold Cranking Amps (CCA)850HCA1250MCA105020Hr Nominal Capacity (Ah)6810Hr Nominal Capacity (Ah)62Reserve Capacity Minutes134TerminalSAETorque Spec in-lbs (Nm max)N/AInternal Resistance2.5Short Circuit3100
