Atlantis is extremely excited to announce the launch of Jason Momoa’s new Mano Eco-Tech SUP.

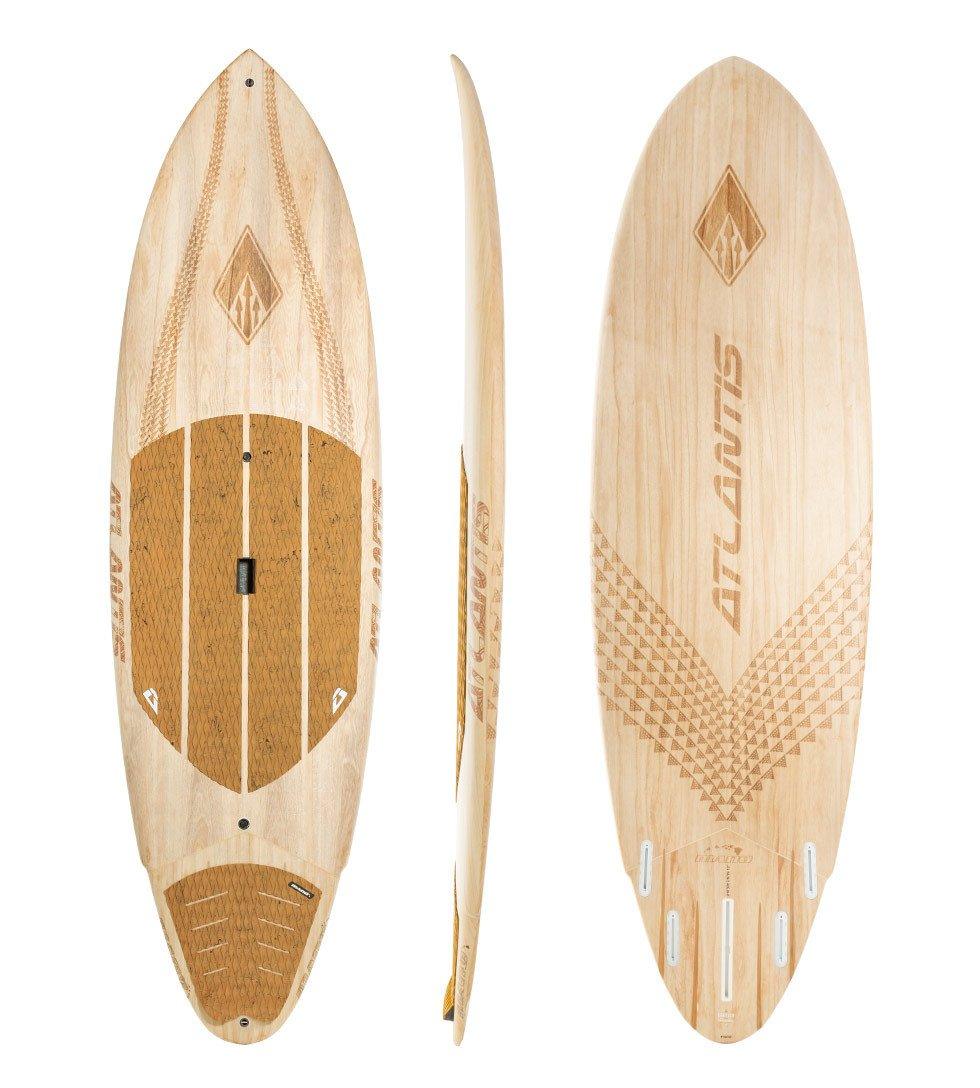

Jason "Aquaman" Momoa has tapped into his prominent Hawaiian heritage and named this extravagant board after the Hawaiian word for shark “Mano”. Jason’s trademark Mano Tattoos had a huge influence in the final design concepts for his board and have been laser etched into the timber inlays.
The shape of this board differs a lot in comparison with most of the Atlantis range. Notable features are the 4 prominent Channels which have been designed to add extra drive and traction through turns. Jason installed a flyer above the fin area which increases manoeuvrability when turning off the tail. This mixed with a rolled vee through the channel area also creates better rail to rail transition. The Mano offers heightened entry rocker to allow for steeper takeoffs and also a high tail rocker to also help manoeuvrability.
The Mano has been constructed out of high-quality materials sourced from the best suppliers from around the globe. Reinforced using Atlantis Eco-tech construction which features a full timber wrap of sustainably sourced paulownia to provide additional strength, reduced weight and a natural aesthetic that everyone loves.
The grip has been designed to complement the boards timber aesthetics with an earthy grip and Hive-Traction transparent triangles that reduce the boards overall weight and increase traction. A perfectly balanced removable 4 + 1 fin system allows you to run 3 different fin configurations. This gives the rider multiple choices for differing water/wave conditions. The fin plugs have been expertly installed into PVC/Divinicell High density foam block that have been impregnated and then shaped into the blank. Customised dual leash plugs keep the board safe and all Mano boards are fitted with the Atlantis signature ergonomic handle.
Jason requested that the dimensions of his smaller sizes be tailored for performance surfers. The rails are a bit lower, the width and thickness are also refined. However the larger sizes are very much geared to the “all rounder” and boast widths above 32 inches and more volume throughout the shape. Jason explains this as a “family orientated” decision and focused on the time he spends at the beach with his family and considers these sizes as boards anyone can paddle or surf.
Best suited for Beginners to Experienced users who want a strong, sturdy and stand out performer
Please be aware that complimentary fins are not included with this board
DIMENSIONS
| LENGTH | WIDTH | THICKNESS | VOLUME |
| 8'10 | 29 5/16 | 4 1/2 | 127.6L |
| 9'0 | 30 | 4 5/8 | 138.5L |
| 9'6 | 31 | 4 5/8 | 148L |
| 10'0 | 32 | 4 5/8 | 165.3L |
| 10'6 | 32 1/2 | 4 11/16 | 177.6L |
SIZING GUIDE
| WEIGHT | BEGINNER | INTERMEDIATE | ADVANCED |
| < 50KG | 9'6 | 8'10 | 8'10 |
| 50-60KG | 9'6 | 8'10 | 8'10 |
| 60-70KG | 10'6 | 9'6 | 8'10 |
| 70-80KG | 10'6 | 9'6 | 8'10 |
| 80-90KG | 10'6 | 9'6 | 8'10 |
| 90-100KG | 10'6 | 10'6 | 9'6 |
| 100-110KG | 10'6 | 10'6 | 10'0 |
| > 110KG | 10'6 | 10'6 | 10'0 |
SPECS
| SPECIFICATION | DESCRIPTION |
| CONSTRUCTION | Moulded EPS foam blank |
| DECK LAMINATION | Eco-Tech Paulownia Timber Wrap |
| BOTTOM LAMINATION | Eco-Tech Paulownia Timber Wrap |
| ROCKER | Medium Entry with High Tail Rocker |
| CONCAVE | Single to Double with vee through the Fins/Channel area |
| SKILL LEVEL | Intermediate - Advanced |
| RAIL TYPE | Mid - Low Rails |
| FINS | 4+1 Fin Configuration
Box Single + 4x Futures Mounted in High Density Foam |
| CHANNELS | Quad Staged Channels |
| TAIL TYPE | Rounded Square |
| CARE INSTRUCTIONS | |
| BOARD ADVICE | |
