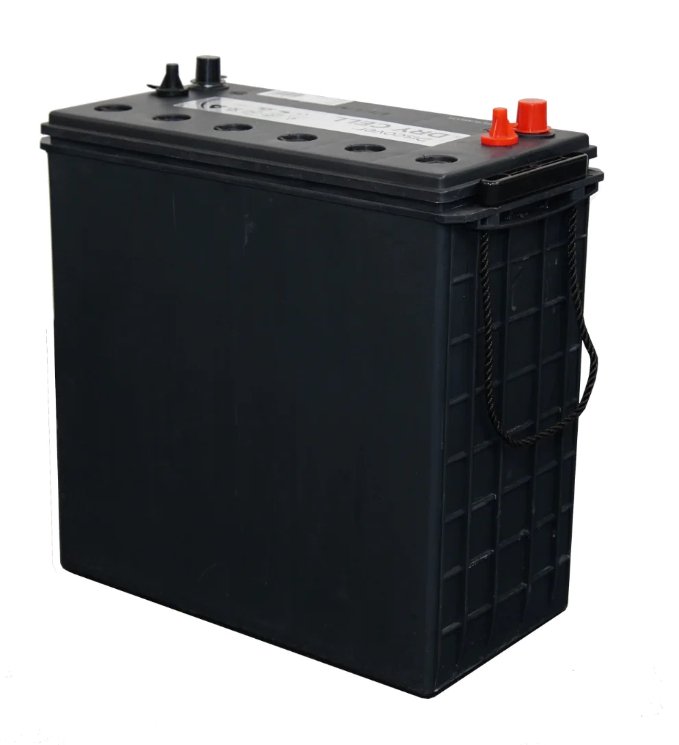

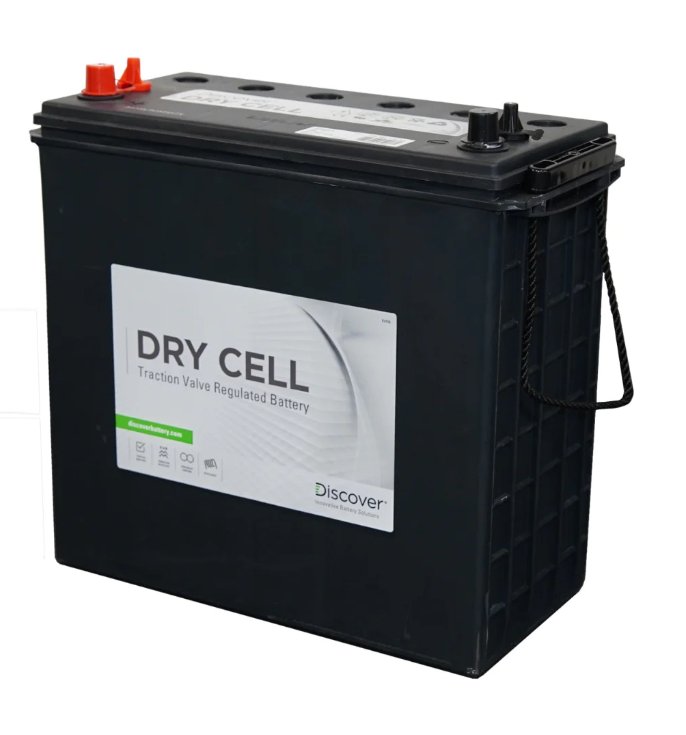

EV185A Deep Cycle 12V 230Ah Battery - Power for Lifts, Floor Scrubbers & Industrial Equipment | Reliable Energy Solution for Warehouse, Marine & Off-Grid Applications

PERFORMANCE SPECIFICATIONS

3 HR: 1.70VPC; 5 HR: 1.75VPC; 20 HR: 1.80VPC. All at 25°C/77°F

FEATURES

HYDRO POLYMER

• Organic capillary separators with hydro polymer electrolytes resist dry-out and prevent thermal runaway
• Maintains performance characteristics over operational life

ENHANCED ALLOYS

• Thick plates with graphite enhanced alloys deliver maximum runtime over operational life

CARBON BOOST

• Carbon additives to increase duty cycle performance, charge acceptance and partial state of charge operation

AUTOMATED THROUGH-THE-PARTITION WELD

• Improved intercell weld consistency, and less lead waste than manual welding process (key models)
• Supports higher current loads and lowers internal resistance

POLYPROPYLENE CASE

• High heat resistance and durability (key industry models)
• High precision pressure relief valves reduce water loss and extend life
• Integrated flame arrestors prevent fire and explosion

BENEFITS

ENHANCED RUNTIME

• High amp hour capacity
• High operational voltage over lifetime
• Delivers 80% DoD above 1.9 VPC

EXTENDED SERVICE LIFE

• Long life superior to deep-cycle FLA / AGM / Gel batteries
• 550+ cycles 70% DoD (IEC 254-1 Traction Lead-Acid)
• 350+ cycles 100% DoD (DIN 43 539 VRLA)

RESILIENCE

• Partial stage of charge operation superior to AGM
• Intense duty cycling superior to AGM / Gel
• Overcharge and over-discharge resilience superior to AGM
• Compatible with AGM / Gel semi-traction charge profile

EXTREME TEMPERATURES

• High temperature life superior to AGM
• Low temperature operation superior to FLA / AGM / Gel batteries

EXTREME VIBRATION RESISTANCE

• Vibration resistance superior to AGM / Gel
• Shock tested (IEC 61373, DIN EN 61373, SAE J537)

OEM TRUSTED

• Exceeds OEM specifications
• Innovative technology
• Global service and support

RELIABLE AND SAFE

• Valve Regulated Lead-Acid, Dry Cell AGM
• Maintenance-free, nonspillable, no-gassing
• Spark and explosion tested (SAE J1495)

CERTIFIED QUALITY

Discover® manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.

Designed in accordance with and published in compliance with applicable standards, including:

• IEC 60254-1. Lead-Acid Traction
• DIN 43 539. VRLA
• SAE J537. Storage
• UL, CE Health Safety Certified

SHIPPING CLASSIFICATION

• Classified as a nonspillable battery
• Without restriction for transport by Sea (IMDG amendment 27)
• Without restriction for transport by Air (IATA/ICAO provision 67)
• Without restriction for transport by Ground (STB, DOT-CFR-HMR49)
