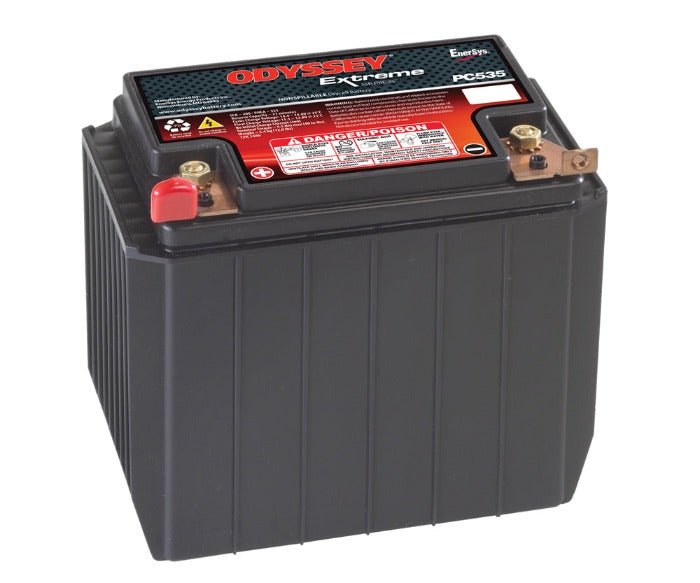

Odyssey Extreme Series PC535

ODYSSEY Extreme Series Battery

ODS-AGM16B

(PC535)with brass M6 side terminalsPowersport vehicles need a powerful battery that’s built to take the constant pounding that comes with the territory, whether it’s is on land, sea, or snow.The ODYSSEY battery can handle it. Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean more power-twice the overall power and three times the life of conventional batteries-up to 400 cycles at 80% depth of discharge!

Dimensions

Length6.7 inWidth3.9 inHeight (terminals included)6.24 inHeight (container)6.18 inWeight12 lbs

Specifications

Voltage12Pulse (5 second) Hot Cranking Amps (PHCA)535Cold Cranking Amps (CCA)200HCA300MCA26520Hr Nominal Capacity (Ah)1410Hr Nominal Capacity (Ah)13Reserve Capacity Minutes21TerminalM6 ReceptacleTorque Spec in-lbs (Nm max)40 (4.5)Internal Resistance8Short Circuit1000
