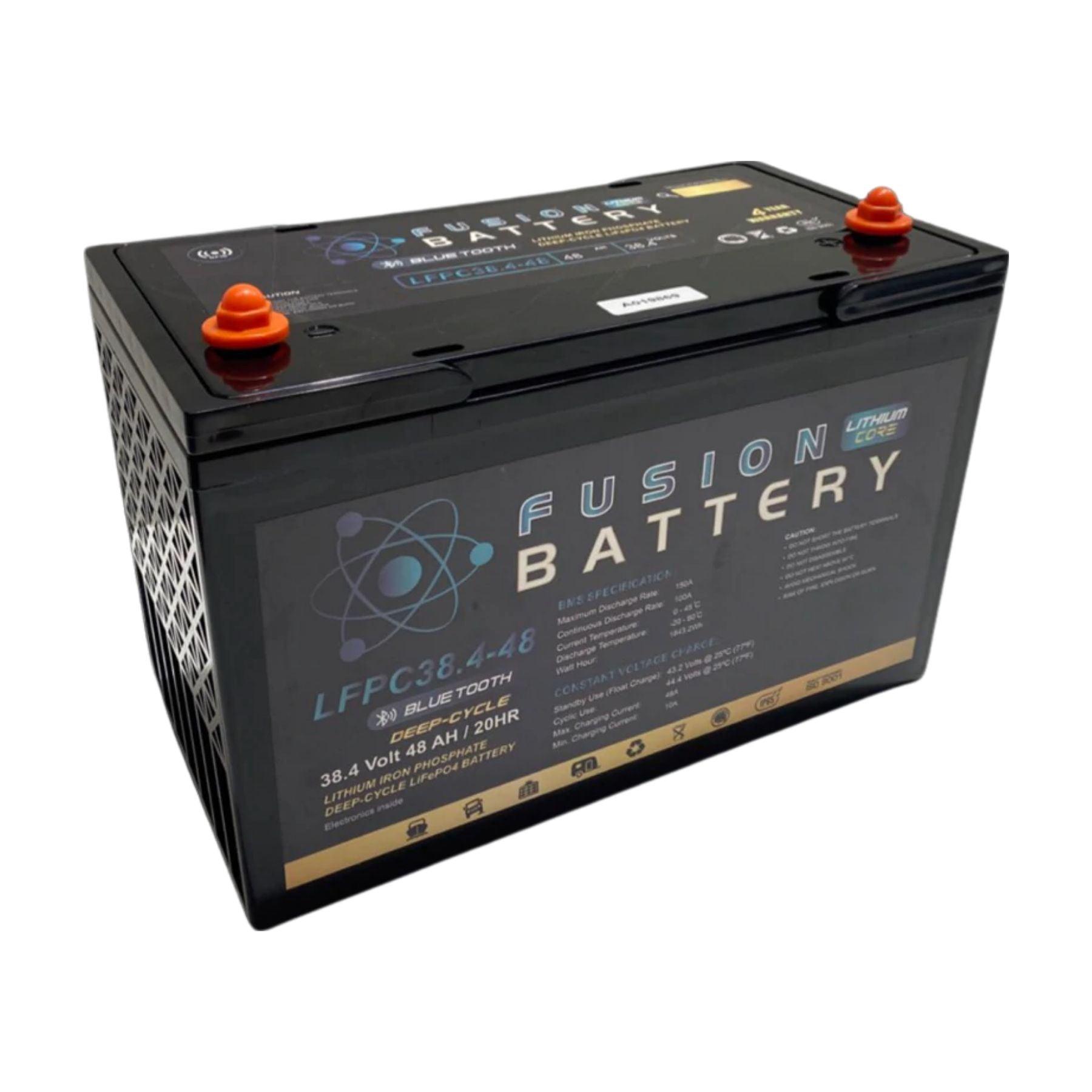

38.4V Fusion Lithium Core Trolling Motor Battery with 30A Smart Charger - Deep Cycle Marine Battery for Kayak, Boat & Fishing | Long Lasting Power for Trolling Motors & Marine Electronics

$1429.45 $2599 -45%

Free shipping on all orders over $50

7-15 days international

28 people viewing this product right now!

30-day free returns

Secure checkout

74033111

Guranteed safe checkout

Items	Standard	Comments
Nominal voltage	38.4V	12S
Typical capacity	48Ah	At 0.2C discharge rate
Max continuous discharge current	80A
Discharge cut-off voltage	About 30V
Charge input voltage	43.8±0.5V	Current, constant voltage(CC/CV) AGM charger & truck alternator is recommended. Lithium-ion charger is acceptable.
Charge current	≤80A	Current, constant voltage(CC/CV) AGM charger & truck alternator is recommended. Lithium-ion charger is acceptable.
Operation temperature range	Charge/ Discharge	0°C~+45°C/-20°C~+60°C
	Discharge	When the environment temperature is higher than 45°C,please pay attention to ventilation and heat rejection.
Storage temperature range	0°C~40°C (Capacity 80%)	Recommended long-term storage temperature is 15~25°C
BMS Low Temperature Cut-off	-10 degrees Celsius	-10 degrees Celsius
BMS Low Temperature Turn-On	0 degrees Celsius	0 degrees Celsius
BMS High Temperature Cut-off	80 degrees Celsius	80 degrees Celsius
BMS High Temperature Turn-On	70 C	70 C
Humidity	5%≤RH≤85%	5%≤RH≤85%
IP Rating	65	65
Total Weight	14.1±0.1kg	14.1±0.1kg
Size(LWH)	L(330mm)* W(173mm)* H(212mm)	L(330mm)* W(173mm)* H(212mm)
Protection function	Over charge protection Over discharge protection Over current protection Short circuit protection, Temperature protection.	Over charge protection Over discharge protection Over current protection Short circuit protection, Temperature protection.

Electrical Performance

Test Items	Test Methods	Test Standards
Capacity retention rate	After standard charge under 5.1 specified conditions, store the cells for 28 days, then discharge at 0.2C(A )to cut-off voltage.	Capacity retention rate≥80%
Cycle Life	1) Standard charge at 0.2C(A), 2) Rest 0.5~1 h 3) Discharge at 0.2C to cut off voltage 4) Capacity retention rate≥80%	>2000cycles @ 100% DOD; >3000cycles @ 90% DOD; >4000cycles @ 80% DOD;

Characteristic Curve

Charging current should not be more than maximum charge current specified in the Product
Specification, Charging current bigger than recommended current may damage the battery;
Discharging current should be no more than maximum discharge current specified in the Product
Specification; Discharging current bigger than recommended discharge current may damage the
battery;
It should be noted that the cell would be possible to be at a over-discharged state by its
self-discharge characteristics in case the cell is not used for long time. In order to prevent
over-discharging, the cell shall be charged periodically to maintain between 38.4V and40.8V
(Recommended 3 months one cycle).Over-discharging may causes loss of cell performance,
characteristics, or battery functions;
Please charge the battery within 12 hours after use;
Battery storage environment follow the above conditions and in standard atmosphere, should be
without strong magnet, no power, no static;
Do not reverse the polarity of the battery pack for any reason;
Do not short circuit the battery pack;
Do not reverse polarity charging;
Battery packs can be combined in series or in parallel according to the specification;
IP65. Do not immerse the battery pack in water or sea water;
Do not disassemble battery;
Do not expose the battery to extreme heat or flame;
AGM charger or truck alternator is recommended. Excludes chargers with automotive
rejuvenation function.
Lithium-ion charger is acceptable.
