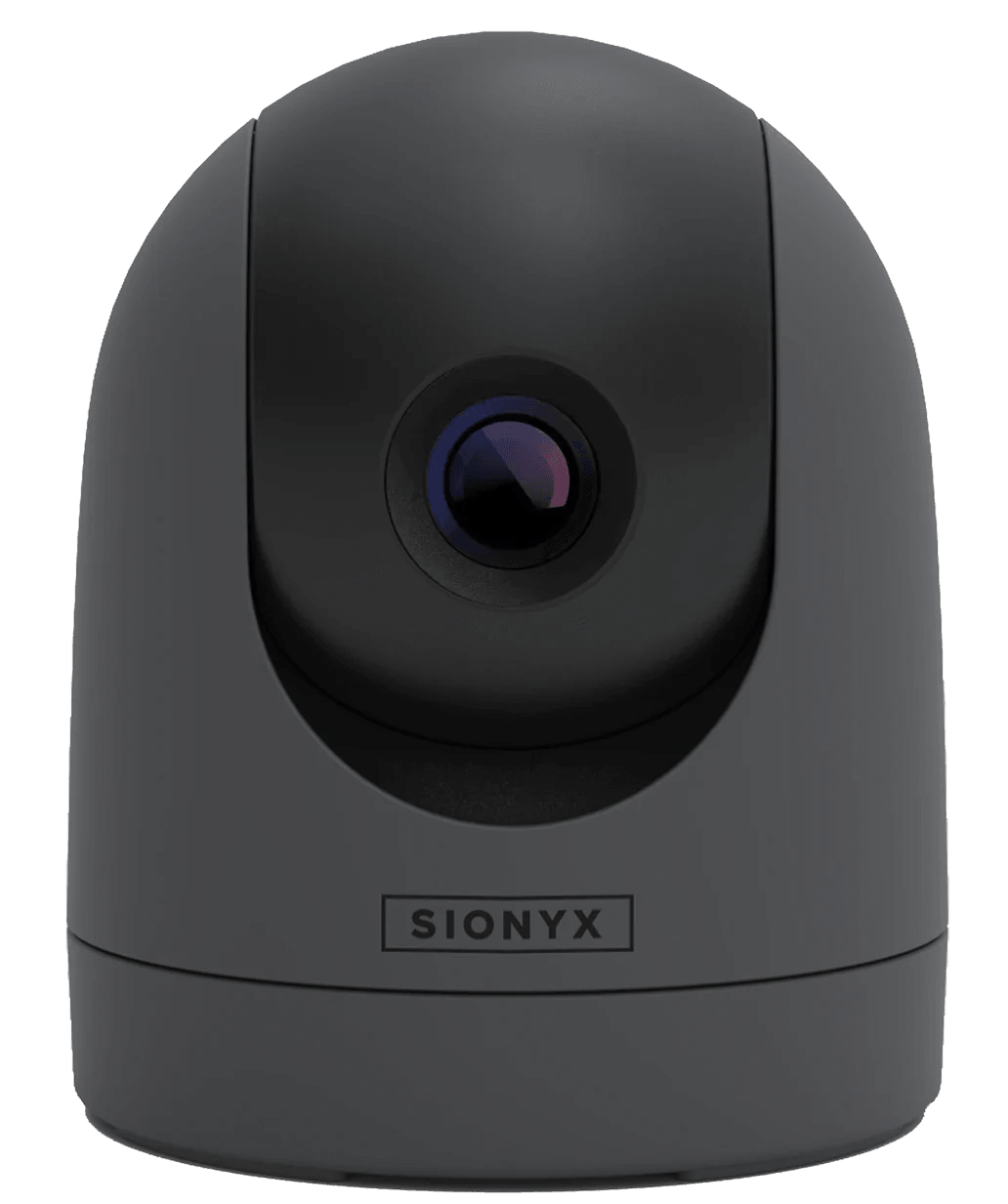

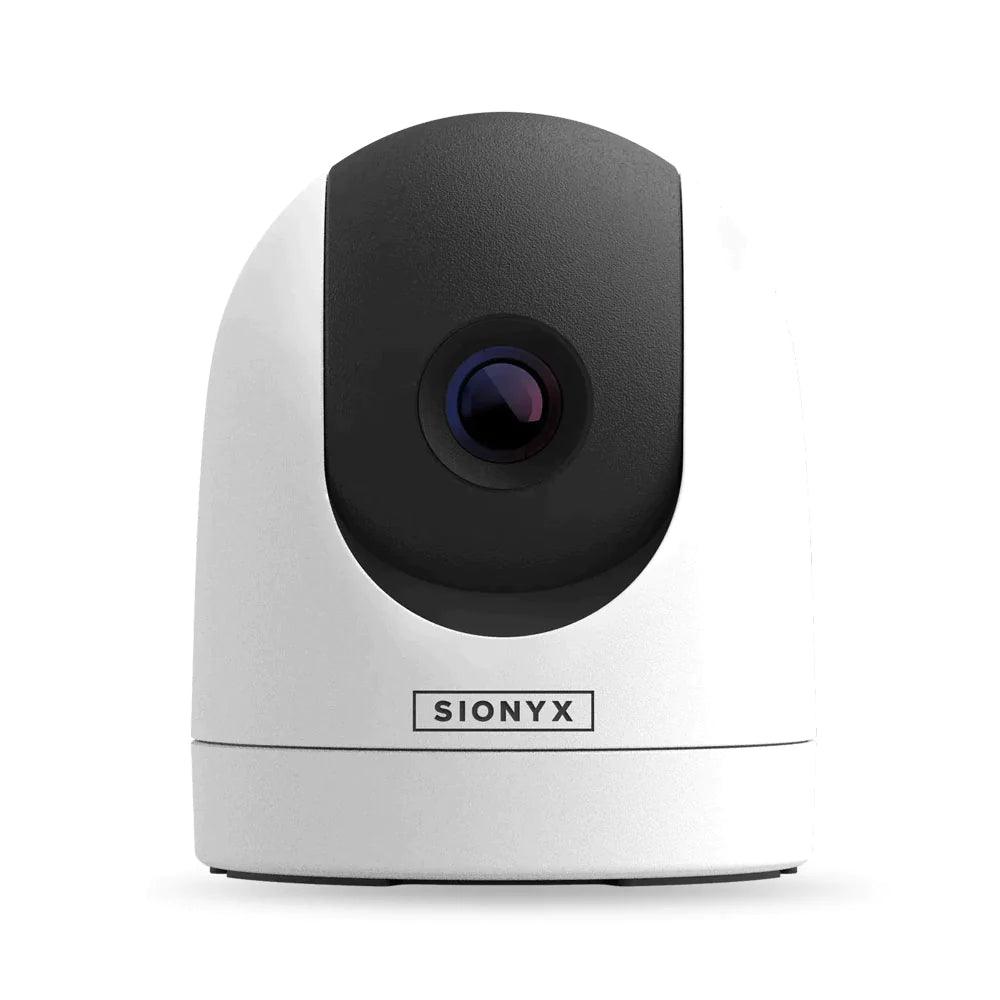

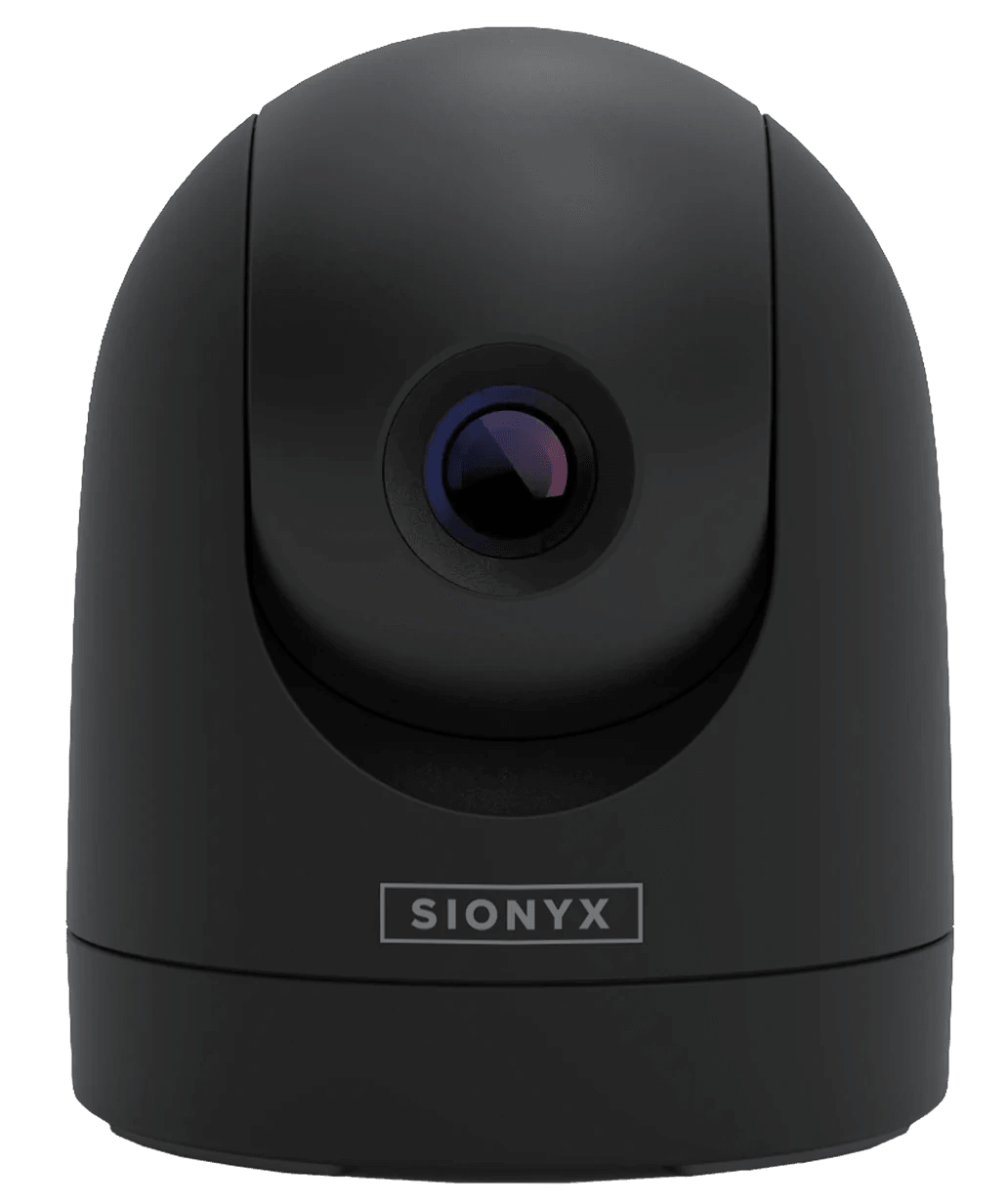

SiOnyx Nightwave D1 Night Vision Dome Camera - HD Infrared Security Camera for Home & Business Surveillance, Outdoor Monitoring, and Low-Light Environments

Nightwave is an ultra-low-light camera built around SIONYX’s patented Black Silicon CMOS sensor. It allows mariners of all levels to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras – navigating safely, avoiding collisions, and maximising time on the water.

With easy mounting and setup, Nightwave can stream video to a mobile device via WiFi or directly connect to other hardware via analog output, displaying clear colour digital night vision.

Specifications

Camera

• Sensor Type: XQE1350 BSI CMOS
• Resolution: 1280 X 1024
• Frame Rate: 30 HZ
• Horizontal Field of View : 44°
• Visible Spectrum: 400-1200NM
• Focus Range: 10M TO INFINITY
• Lens: 16MM F/1.4

System

• Video Out: Analog Video [NTSC]
• Analog Video Connection: SMA / BNC/ RCA
• Wireless Communications: WiFi + Bluetooth
• Power In: 12Vdc / 5Vdc[USB]
• Power Connection: Tinned Copper Wire / USB [with provided optional cable]

Environmental

• Ingress Protection: IP67 Water / Dust - Resistant
• Shock & Vibration: IEC60945 [V15G | H:9G] | IK08
• Operating Temperature: -20°C To +50°C
• Storage Temperature: -20°C To +80°C
• Range Perfomance (1/4 moon) Detect Man-Sized Object: 150 M

Physical

• Weight: 870 G [1.9 LBS]
• Dimensions: 127 X 127 X 152 MM [5 X 5 X6 IN]
• Material: UV Resistant Polycarbonate

Mounting options

• Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware
  • Bulkhead Mount: 4 X M6 Blind Holes
  • Top-Down Mounting Holes
• Temporarily mount via the single 1/4” 20 center mount
• Once mounted, camera features manual vertical tilt adjustment

Power and Video Output Options

• The preferred video output must be selected using the SIONYX App.
• WiFi communication and command and control options are available via the SIONYX App using either power source.

Powering the camera with 12V DC and using the analog video output is the preferred method for integration with onboard electronics [MFD].
A user may want to use USB power as a convenient option if a 12V DC battery is not available. While using USB as a power option, the analog video output will not be available.

Powering the camera with the USB is the preferred method when connecting to a host device [PC/Laptop].

• When the camera is powered with 12V DC using the factory-installed cable:
  • WiFi live video streaming is available via the SIONYX App
  • USB video output is not available
  • Analog video output is available via the SMA-BNC-RCA connector on the factory-installed cable.

• When the camera is powered with USB [5V DC] using the provided USB cable:
  • WiFi live video streaming is available when selected in the SIONYX App
    • Note: If WiFi video is selected via the App, USB video will NOT be available.
  • USB video out can be used when the camera is plugged into a host device [PC/Laptop]
    • Note: If USB video is selected via the App, WiFi video streaming will NOT be available.
  • Analog video output is not available.

Package Inclusion

• SIONYX Nightwave D1 camera
• 12v power and Analogue connection cable - 5 meters - SMA (already plugged in)
• SMA-BNC Adapter
• BNC-RCA Adapter
• Digital USB cable – 2 Meters  (to be used for power/video instead of 12v if required)
• Fuse and inline Fuse holder.
• Mounting Template
• Mounting hardware kit (inc, screws and tools)
• Quick Start Guide
